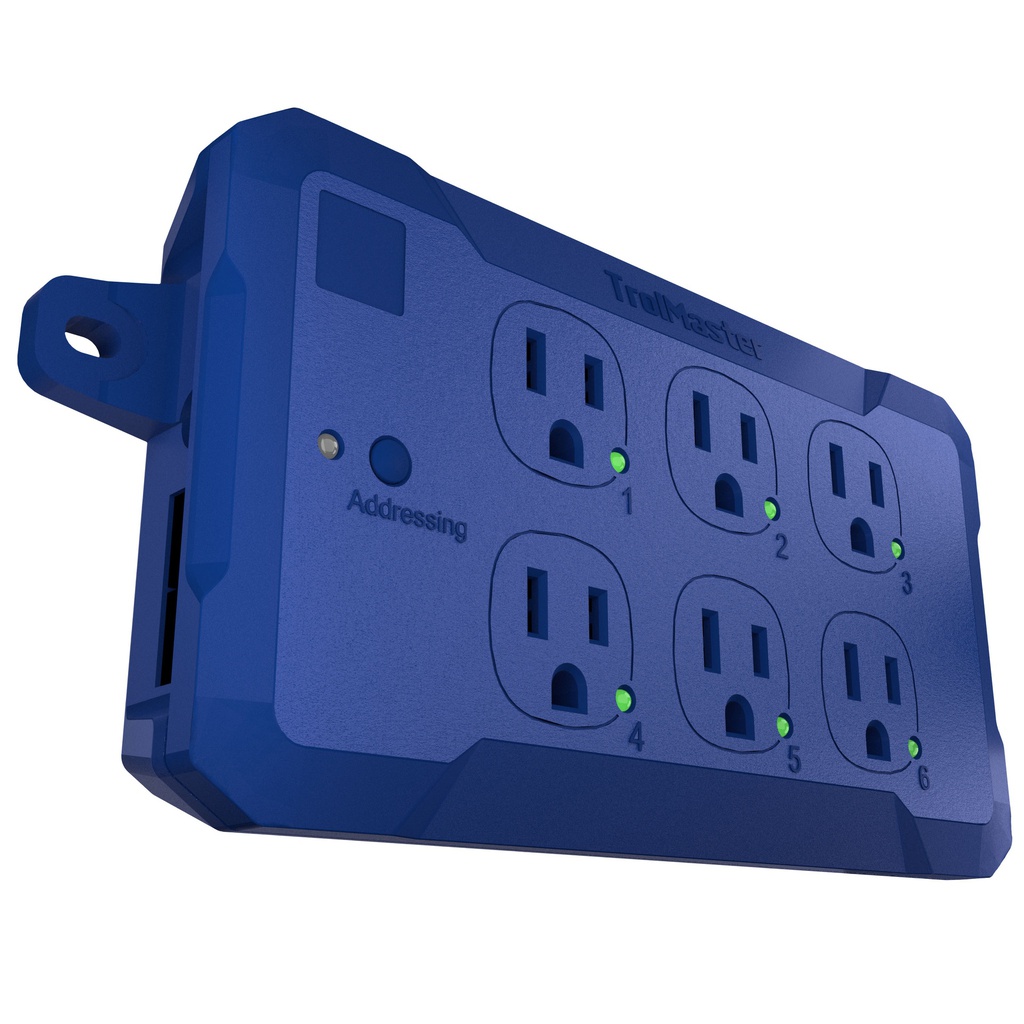

Aqua-X 110V Control Board （OA6-110）

The OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off. Up to (5) of the OA6-110 modules can be connected to a single Aqua-x.

Package Contents:
110V Control Board
16ft RJ12 Cable

Features:
LED Power Indicator
Addressing Button
6 Individually-Controlled 110V Outputs
Individual LED Indicator for Each Output
Double RJ12 Cable Sockets for Easy Connectivity

Specifications:
Input Voltage: 120 VAC
Max Input Current: 9A
Max Output Voltage/Current: 120VAC/1.5A per Output
Working Environments: Temperature 32°-122°F, Humidity <90%
Packaging Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
