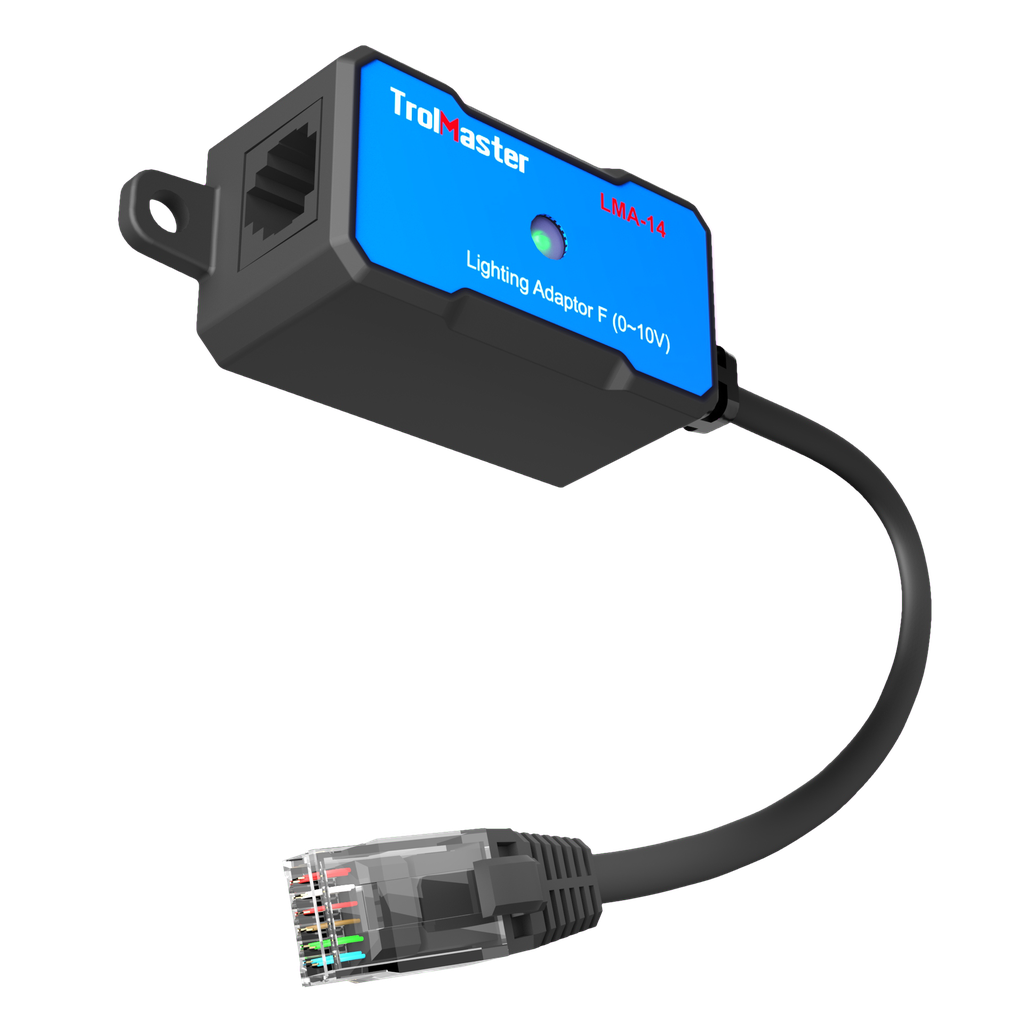

TrolMaster Lighting Control Adapter F for Controlling Fluence or any light using 0~10V protocal
Terms and Conditions
Shipping: 2-3 Business Days
TrolMaster Lighting Control Adapter F for Controlling Fluence or any light using 0~10V protocal
TrolMaster’s Hydro-x system can control
most of the supplemental lighting fixtures sold today. Most light
manufacturers provide the ability to control their lighting systems
using what known as a low-volt control. That low-volt control can take
many forms and communication protocols. TrolMaster makes several types
of lighting adapters (LMA units) that allow the Hydro-x to control
lights using their low-volt control option.
This LMA-14 lighting adapter is specially designed to control the HIDs like Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL and LEDs like Fluence/Growers Choice ROI/Next light/Spectrum King/HLG
Using the LMA-14 Adapter (Adapter F) for multiple lights
The LMA-14 Adapter can be used for 24 Drivers (LEDs) or 40 Ballasts with either the HCS-1 or HCS-2 Hydro-X controllers. Both the Hydro-X Controllers have 2 line lights giving the ability to control double the amount of each type of light (48 LEDs and 80 Ballasts).
If you require running more than that amount of lights, you can achieve this using the SPH-1 Splitter Hub . The SPH-1 Splitter Hub has 8 open RJ ports allowing you to plug a separate LMA-14 into each giving you the option of controlling 8x the normal amount, 8x(24 LEDs or 40 ballasts). You can use as many SPH-1 Splitter hubs to achieve the maximum amount of lights your facility requires.
NOTE: 2 knob fixtures allowing individual control of 2 different bulbs can NOT be controlled by the Hydro X
Features
LED Indicator
Convert Digital Signal to Analog Signal
0.6 ft RJ12 Cable
RJ12 Cable Socket
Plug and Play
For controlling Nanlux brand products
Specifications
Output Voltage: 0~11.5V
Maximum Current: 0.2A
Working Environments: Temperature 32-122 F, Humidity = 90%
Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
G.W. per weight: 0.05kgs
