TrolMaster Sensor Board for Aqua-X only

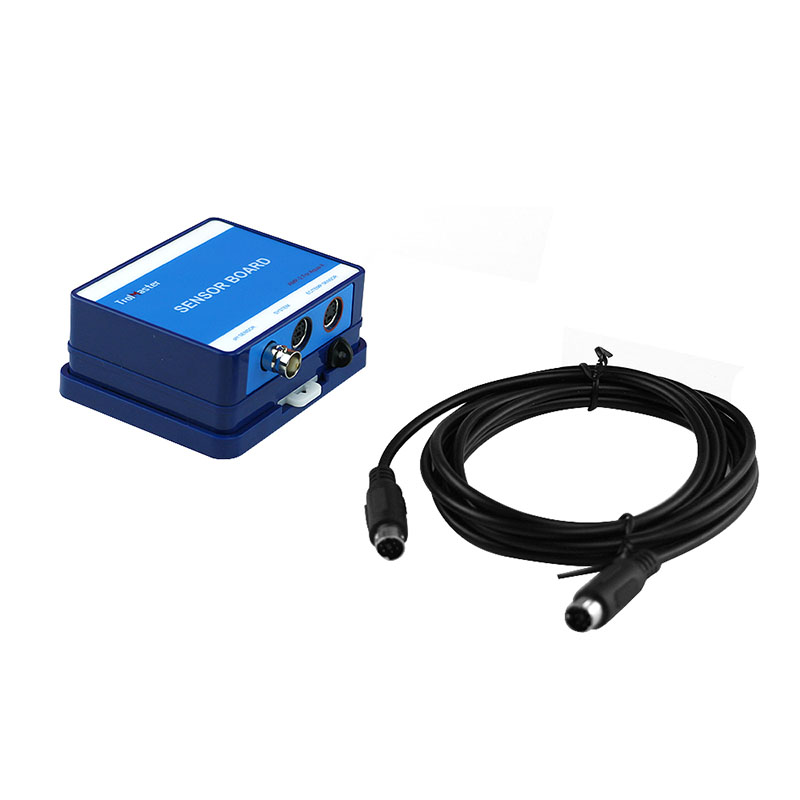

Aqua-X Sensor Board （AMP-2）
The AMP-2 module connects the Aqua-x to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-x, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-x providing 24/7 notification of pH / EC or temperatures that are out of limits.
Package Contents:
Sensor Board
2.5-Meter Long Signal Cable
Features:
Simpe-to-Use DIN Type Bracket for Easy Installation
BNC Terminal (left) allows Direct Connection to pH Sensor
Mini DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
Mini DIN Terminal (middle) allows Direct Connection to Aqua-X Controller
Specifications:
Temperature 32-122 F, Humidity =90%
Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
